Example: LSLCD Obtained Filters for the Bayer Structure

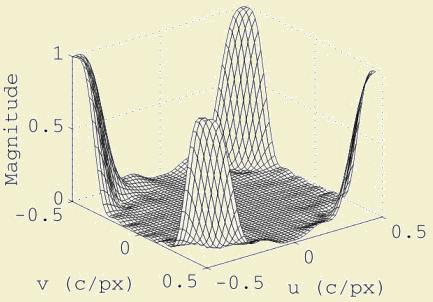

The figures below show the frequency response of the filters obtained by applying these procedures. The training set consists of images 1-12 of the standard Kodak database and all filters have a support of 11 x 11.

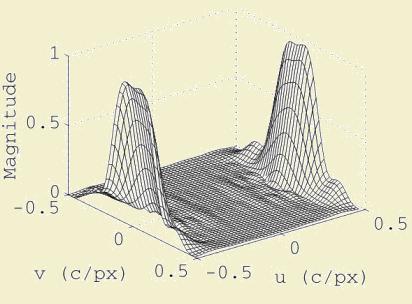

h_2 filter for Bayer

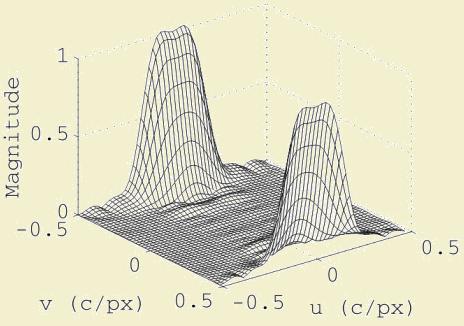

h_3 filter for Bayer
