*Examples
Figure 12.25 is an example of the acceptance of a signal indicating the cancellation of an
order. The acceptance of the signal causes an invocation of a cancellation behavior. This action is enabled on entry to the
activity containing it, therefore no input arrow is shown.

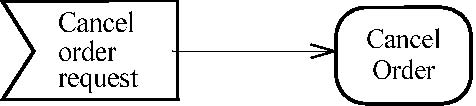

Figure 12.25 - Accept signal, top level in scope.
In
Figure 12.26
, a request payment signal is sent after an order is processed. The activity then waits to receive a payment confirmed signal.
Acceptance of the payment confirmed signal is enabled only after the request for payment is sent; no confirmation is accepted
until then. When the confirmation is received, the order is shipped.

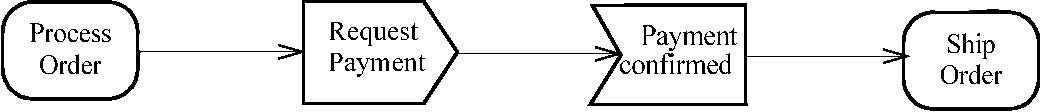

Figure 12.26 - Accept signal, explicit enable
In
Figure 12.27
, the end-of-month accept time event action generates an output at the end of the month. Since there are no incoming edges
to the time event action, it is enabled as long as its containing activity or structured node is. It will generate an output
at the end of every month.

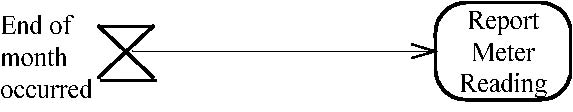

Figure 12.27 - Repetitive time event
