16.2 Organization of the Warehouse Operation Package

   The Warehouse Operation package depends on the following packages: • org.omg::CWM::ObjectModel::Core • org.omg::CWM::ObjectModel::Behavioral • org.omg::CWM::Analysis::Transformation

   Separate model diagrams are shown below for each of the three main areas supported by the package.

   TransformationActivity (from Transformation)

   execution

   TransformationExecution

   TransformationStep (from Transformation)

   execution

   ActivityExecution StepExecution

   Figure 16-1 Transformation Executions

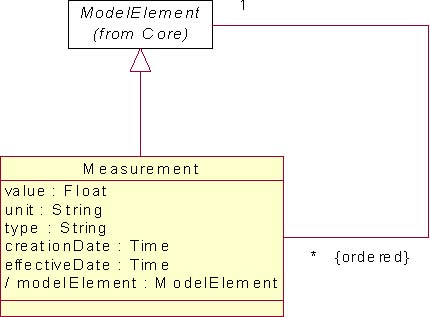

   Figure 16-2 Measurements

   ChangeRequest

   Figure 16-3 Change Requests
