Sim68k Overview

1. Introduction


Here is a simulator for a processor called sim68k which is defined in Section 2. The sim68k processor has a subset of the addressing modes of MC68000 and has 32 instructions, most of which are derived from those of MC68000. The simulator will take as input a program written in sim68k assembly/machine language and will execute it, that is to say it will execute each of the sim68k machine instructions in the input program.

What we provide is the following:

  • The description of sim68k containing
    • The description of the sim68k architecture
    • The fetch-execute (or instruction) cycle of sim68k
    • The description of the 6 addressing modes of sim68k
    • A list of 32 instructions of sim68k
    • The description of the instruction encoding & status bit (HNZVC) update
    • The list of errors detected
  • A simulator (Sim68k.class) written in Java, together with a function library (SimUnit.class),
  • A translator/compiler (Translator.class) used to convert sim68k assembly programs (.a) to binary files (.b) readable by the simulator.
  • Several test programs use to illustrate how to program/use this simulator

2. General Architecture of sim68k


In this description of sim68k, the following type definitions are used:

  • All data and addresses are in hexadecimal.
  • A "bit" represents either TRUE (if it is 1) or FALSE (if it is 0).
  • A "twobits" represents two bits and is used as an index from 0 to 3.
  • A "byte" represents 2 hexadecimal digits ($00...$FF).
  • A "word" represents 2 bytes ($0000...$FFFF).
  • A "long" represents a long word which is 2 words, i.e., 4 bytes ($0000 0000 ... $FFFF FFFF).
  • If a byte, word or long word represents data (i.e., a value) then it is interpreted as a signed binary integer in 2's CF.

Memory

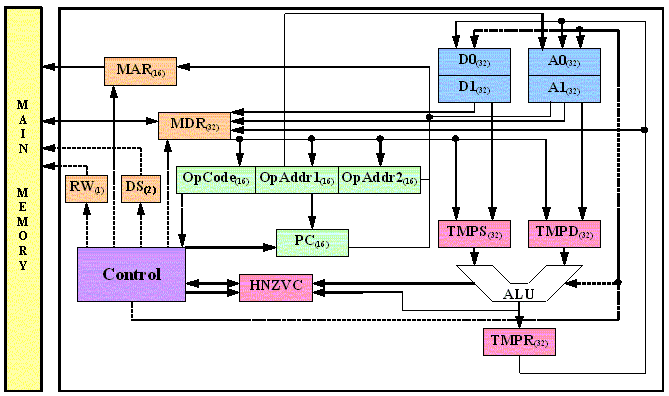

  • We simulate the memory as an array. The elements of the memory array are of type "byte" because the memory is byte addressable.  The array index is of type "word" because a memory address is a word. Addresses range from $0000 to $1000. (4097 bytes in total)
  • The communication between the CPU and the memory is done via four registers to be represented by global variables in the simulator:
    • MAR (Memory Address Register, type word),
    • MDR (Memory Data Register, type long),
    • RW (READ/WRITE, type bit), for read, RW = TRUE, for write, RW = FALSE
    • DS (Data Size, type twobits), for a byte, DS = 00, for a word, DS = 01, for a long word, DS = 10
  • To read or write a value V (byte, word, or long word) from or into the memory location X, you'll use a procedure similar to the one in tc2111.


CPU Registers

In addition to MAR, MDR, RW and DS, the sim68k has the following registers:

  • PC (word) = program counter. This register holds the memory address of the NEXT instruction to be executed.
  • OpCode (word) = the opcode of the instruction currently being executed.
  • OpAddr1 (word) = the address of the first operand of the instruction currently being executed (if & when needed (Sections 5&6)).
  • OpAddr2 (word) = the address of the second operand of the instruction currently being executed (if & when needed (Sections 5&6)).
  • D0 and D1 (long) = Data registers. The MC68000 has 8 such registers, but we will use only 2 in the simulator.
  • A0 and A1 (long) = Address registers. The MC68000 has 8 such registers, but we will use only 2 in the simulator.
  • TMPS, TMPD, TMPR (long) = Buffer (or Temporary) registers. Used as input and output to the ALU (Source, Destination and Result)

Status Bits

sim68k has the following status bits:

  • H (bit) = Status bit "Halt".
  • N (bit) = Status bit "Negative".
  • Z (bit) = Status bit "Zero".
  • V (bit) = Status bit "Overflow"
  • C (bit) = Status bit "Carry"

During the execution of some instructions, some of these bits are updated. See Section 6 for information on when and how these bits are updated.

In the MC68000, the status bits are located in a special register (CC - Code Condition). In your simulator, you will implement them as individual boolean variables to simplify their manipulation.

3. Fetch-Execute Cycle of sim68k


In the simulator, the "controller" simulates the fetch-execute cycle with the following algorithm:

  1. Initialization
     (* Set PC to $0000 and set the status bits to FALSE *)

  2. Repeat
        2.1 Fetch_OpCode
        2.2 Decode_Instruction
            (* According to the fields in the opcode     *)
            (* Example: OpName = bits 15 to 11 in OpCode *)
            (*          NbOper = bit  10 in OpCode + 1   *)
            (*          DS     = bits  9 and 8 in OpCode *)
            (*          M1     = bits  7 to 5 in OpCode  *)
            (*          N1     = bit  4 in OpCode,  etc. *)
        2.3 Fetch_Operands
           (* In OpAddr1 and OpAddr2, if operands are required. *)
        2.4 If NOT(H)
            Then
              2.4.1 Execute_Instruction
                 (* Execution of most instructions follows these steps:  *)
                 (*    1. Fill TMPS (if necessary)                       *)
                 (*    2. Fill TMPD (if necessary)                       *)
                 (*    3. Compute TMPR using TMPS and TMPD               *)
                 (*    4. Update status bits HNZVC (if necessary)        *)
                 (*    5. Store result in the destination (if necessary) *)
     Until (H = true)  (* If H = True, then halt *)

4. Addressing Modes of sim68k


Six addressing modes are available to most instructions:

  • Data register direct         (using D0 or D1)
  • Address register direct      (using A0 or A1)
  • Address register indirect    (using (A0) or (A1))
  • Address register indirect with post-increment  (using (A0)+ or (A1)+)
  • Address register indirect with pre-decrement   (using -(A0) or -(A1))
  • Relative/Absolute addressing (using a label, an identifier or an absolute address between $0000 to $1000).

Several instructions are constrained to specific addressing modes:

  • Branching instructions (BRA, BVS, BEQ, BCS, BGE, BLE) can only use Relative/Absolute addressing. In this case, the branching address is indicated by the given relative or absolute address which is a label  or an absolute address between $0000 to $1000.
    • For example, "BRA.W address" means branch unconditionally to the given address, i.e., PC := address.
  • The  "MOVEA Source, Destination"  instruction only allows  Relative/Absolute addressing for the Source operand and address register direct for the Destination operand. In this case, the Source operand is indicated by the given relative or absolute address which is an identifier or an absolute address between $0000 to $1000.
    • For example, "MOVEA.W address, Ai" means copy the given address itself to the register Ai, i.e.,  Ai := address.

IMPORTANT: Note that several assembly instructions in the test programs make use of labels (LABEL) as well as of variable definitions (DEF). All these names are preceded by an arobas symbol (@). The value of these labels/variables is the address where they have been defined. Hence, it becomes simple to define a loop label (LABEL @Loop ) and then reference it (BRA @Loop). The compiler (assembler) will compute the address of each label and variable name in the program. These names are then replaced by their address in the binary code.

5. sim68k Instruction Set


The instruction set of sim68k contains 32 instructions where:

  • S is the source operand.
  • D is the destination operand.
  • "data" represents a 4-bit integer constant (i.e., $0..$F) directly encoded in the instruction as an immediate operand.
  • "address" represents an address between $0000 and $1000.
  • At the end of the explanation for each instruction, you will find an  interpretation of the operation in a pseudo-language, to understand the functionality of the instruction.
  • Data Size (.B, .W, .L) is not indicated here but will be indicated in the assembly/machine language programs.

Arithmetic (in 2's CF)

   * ADD S, D
     Binary integer addition (Regular). D := D + S;
   * ADDQ data, D
     Binary integer addition (Quick). D := D + data;
   * SUB S, D
     Binary integer subtraction (Regular). D := D - S;
   * SUBQ data, D
     Binary integer subtraction (Quick). D := D - data;
   * MULS S, D
     Binary integer multiplication (Signed). D.L := D.W * S.W;
   * DIVS S, D
     Binary integer division (Signed). LSW(D) := D.L DIV S.W;
                                       MSW(D) := D.L MOD S.W;
   * NEG D
     Binary integer negation (Regular). D := 2's complement of D;
   * CLR D
     Clear (set to 0). D := 0;

Logic


   * NOT D
     Logical NOT. D := NOT(D);
   * AND S, D
     Logical AND. D := D AND S;
   * OR S, D
     Logical OR. D := D OR S;
   * EOR S, D
     Logical Exclusive-OR. D := D XOR S;

Shift/rotate


   * ASL data, D
     Arithmetic Shift Left. D := D SHL data;
   * ASR data, D
     Arithmetic Shift Right. D := D SHR data where the sign of the new value
                              of D is the same as that of the previous value
                              of D;
   * ROL data, D
     Rotate Left. D := D ROL data;
   * ROR data, D
     Rotate Right. D := D ROR data;

Comparison


   * CMP S, D
     Compare. (* Adjust HNZVC according to D - S *)
   * TST D
     Test.    (* Adjust HNZVC according to D *)

Branch


   * BRA address
     Branch unconditionally. PC := address;
   * BVS address
     Branch if overflow is set. if V then PC := address;
   * BEQ address
     Branch if equal. if Z then PC := address;
   * BCS address
     Branch if carry is set. if C then PC := address;
   * BGE address
     Branch if greater than or equal. if (N XOR V)' then PC := address;
   * BLE address
     Branch if less than or equal. if (N XOR V) OR Z then PC := address;

Transfer


   * MOVE S, D
     Move (Regular). D := S;
   * MOVEQ data, D
     Move (Quick). D := data;
   * EXG S, D
     Swap S and D. S <--> D;
   * MOVEA address, Ai
     Move address to the register Ai.  Ai := address;

Others (not in MC68000)


   * INP D
     Input from keyboard.
   * DSP S
     Display on terminal (Source and its content).
     System.out.println("S:", S);
   * DSR
     Display on terminal the contents of the status bits
     (i.e., Display Status Register).
     System.out.println("H:",H,"N:",N,"Z:",Z,"V:",V,"C:",C);
   * HLT
     Halt program. H := True;

Formats

All opcodes are on 16 bits. Opcodes may be of two formats.

  • F1 is a format where at most two ordinary operands are allowed.
  • F2 is a format where 1 immediate operand, encoded directly in the opcode, and at most 1 ordinary operand are allowed.

In format F1, Opref-1 (reference to operand-1) and Opref-2 (reference to operand-2) give information on operand-1 and operand-2, respectively.
In format F2, Opref-2 (reference to operand-2) gives information on operand-2.

            |   OpCodeInfo       |  Opref-1  |  Opref-2  |
            +----------+----+----+------+----+------+----+
       F1:  |    O     | DS | P  |  M1  | N1 |  M2  | N2 |
            +----------+----+----+------+----+------+----+

            |   OpCodeInfo       |  Opref-1  |  Opref-2  |
            +----------+----+----+-----------+------+----+
       F2:  |    O     | DS | P  |   Data    |  M2  | N2 |
            +----------+----+----+-----------+------+----+

   * O (5 bits)   : Opcode name (i.e., OpName)
   * P (1 bit)    : Number of operands minus 1 (i.e., NbOper)
                    (i.e., P = 0 ==> one operand; P = 1 ==> two operands)
                     As a special case if the number of operands is zero,
                     then P = 0.
   * DS (2 bits)  : Size ( i.e., 00 ==> Byte, 01 ==> Word, 10 ==> Long Word)
   * M1 (3 bits)  : Addressing mode of operand-1 (if any)
   * N1 (1 bit)   : Register number of operand-1 (if any)
                    (Not considered when M1 = 011)
   * M2 (3 bits)  : Addressing mode of operand-2 (if any)
   * N2 (1 bit)   : Register number of operand-2 (if any)
                    (Not considered when M2 = 011)
   * Data (4 bits): 4-bit integer constant (i.e., $0..$F)
     One has to form a byte by putting $0 to the left of the hexadecimal digit
     represented by "data".
     For example, if "data" is $A, then form a byte $0A.
     If the size is .B then use the byte $0A.
     If the size is .W or .L then sign-extend the byte $0A
     (by putting zeros to the left of $0A) to the required length.

Addressing modes (M1 and M2) are encoded on 3 bits:

  • 000: Data register direct
  • 001: Address register direct
  • 011: Relative/Absolute addressing
  • 100: Address register indirect
  • 110: Address register indirect with post-increment
  • 111: Address register indirect with pre-decrement

   If M1 = 000 then N1 refers to either D0 or D1, (i.e., N1=0 refers to D0, N1=1 refers to D1).
   If M1 = 001 or 100 or 110 or 111 then N1 refers to either A0 or A1, (i.e., N1=0 refers to A0, N1=1 refers to A1).
   If one replaces M1 by M2 and N1 by N2, the above two statements remain valid.

6. Instruction encoding and status bits updating


The following table contains more information on the
format and encoding of each instruction.

   * Mnemo: Mnemonic
   * Fmt: Format (F1 or F2)
   * OpName: Opcode name (in binary, 5 bits).
   * P: Number of operands minus 1 (in binary, 1 bit).
   * Size: Allowed Size(s). B = Byte, W = Word, L = Long.
   * HNZVC: Status bits.

For  updating the status bits, we will use the following notation:
     *  - : Not affected
     *  0 : Set to false
     *  1 : Set to true
     *  * : Affected as follows: N=true iff Rm=1; Z=true iff R=0
     *  ? : See comments
     * Sm : the most significant bit of Source operand S
     * Dm : the most significant bit of Destination operand D
     * Rm : the most significant bit of Result R
     *  r : Shift count

When we refer to the most significant bit (Sm, Dm, or Rm), we have to consider what size is in use. For example, for Dm:

   * If Size=B, then Dm is bit #07 of D
   * If Size=W, then Dm is bit #15 of D
   * If Size=L, then Dm is bit #31 of D

Mnemo  Fmt  OpName P  Size   HNZVC  Comments
-----  ---  ------ -  -----  -----  ------------------------
ADD    F1   00000  1  B,W,L  -**??  V=Sm.Dm.Rm' + Sm'.Dm'.Rm
                                    C=Sm.Dm + Rm'.Dm + Sm.Rm'
ADDQ   F2   00001  0  B,W,L  -**??  V=Sm.Dm.Rm' + Sm'.Dm'.Rm
                                    C=Sm.Dm + Rm'.Dm + Sm.Rm'
SUB    F1   00010  1  B,W,L  -**??  V=Sm'.Dm.Rm' + Sm.Dm'.Rm
                                    C=Sm.Dm' + Rm.Dm' + Sm.Rm
SUBQ   F2   00011  0  B,W,L  -**??  V=Sm'.Dm.Rm' + Sm.Dm'.Rm
                                    C=Sm.Dm' + Rm.Dm' + Sm.Rm
MULS   F1   00100  1    W    -**00

DIVS   F1   00101  1    L    -**?0  V=division overflow

NEG    F1   00110  0  B,W,L  -**??  V=Dm.Rm,  C=Dm+Rm

CLR    F1   00111  0  B,W,L  -**00

NOT    F1   01000  0  B,W,L  -**00

AND    F1   01001  1  B,W,L  -**00

OR     F1   01010  1  B,W,L  -**00

EOR    F1   01011  1  B,W,L  -**00

ASL    F2   01100  0  B,W,L  -**??  V=Dm.Rm' + Dm'.Rm
                                    If r > 0 then C=D(m-r+1)
                                             else C=false
ASR    F2   01101  0  B,W,L  -**0?  If r > 0 then C=D(r-1)
                                             else C=false
ROL    F2   01110  0  B,W,L  -**0?  If r > 0 then C=D(m-r+1)
                                             else C=false
ROR    F2   01111  0  B,W,L  -**0?  If r > 0 then C=D(r-1)
                                             else C=false
CMP    F1   10000  1  B,W,L  -**??  V=Sm'.Dm.Rm' + Sm.Dm'.Rm
                                    C=Sm.Dm' + Rm.Dm' +Sm.Rm
TST    F1   10001  0  B,W,L  -**00

BRA    F1   10010  0    W    -----  Operand is an address (M1=011)

BVS    F1   10011  0    W    -----  Operand is an address (M1=011)

BEQ    F1   10100  0    W    -----  Operand is an address (M1=011)

BCS    F1   10101  0    W    -----  Operand is an address (M1=011)

BGE    F1   10110  0    W    -----  Operand is an address (M1=011)

BLE    F1   10111  0    W    -----  Operand is an address (M1=011)

MOVE   F1   11000  1  B,W,L  -**00

MOVEQ  F2   11001  0  B,W,L  -**00

EXG    F1   11010  1    L    ---00  Both operands are registers

MOVEA  F1   11011  1    W    -**00  Source operand is an address  (M1=011)
                                    Destination is an address register
INP    F1   11100  0  B,W,L  -**00

DSP    F1   11101  0  B,W,L  -----

DSR    F1   11110  0  B,W,L    -----  Although P = 0, there is no operand.

HLT    F1   11111  0  B,W,L    1----  Although P = 0, there is no operand.

7. Errors detected


Here are several types of errors that have to be detected while executing a given program. When an error is detected, the H bit must be set to true after your simulator displays an appropriate error message.

   * Invalid number of operands (address and, if you want, instruction):

     For instance, if the address $0124 contains the opcode $0900,
     i.e., (ADDQ.B #$0, D0), the following message could be displayed:

     *** ERROR *** Invalid number of operands for ADDQ at address $0124.

   * Invalid data size (address and, if you want, instruction):

     For instance, if the address $0124 contains the opcode $9060,
     i.e., (BRA.B $<some address>), the following message could be
     displayed:

     *** ERROR *** Invalid data size for BRA at address $0124.

   * Invalid addressing mode (address and, if you want, instruction):

     For instance, if the address $0124 contains the opcode $9200,
     i.e., (BRA.W D0), the following message could be displayed:

     *** ERROR *** Invalid addressing mode for BRA at address $0124.

   * Division by 0 (address and, if you want, instruction):

     For instance, if the address $0124 has a signed division (DIVS)
     with 0 as an operand, the following message could be displayed:

     *** ERROR *** Division by 0 for DIVS at address $0124.

8. Test programs



Assembly file format .68a

Contains the source code in sim68k assembly language. comments start qith a semi-colon (;). It is advised to put only one instruction per line.

Binary file format .68b

  • Comments are between slashes ( / commentaire / ).
  • Programs, shown as a sequence of bytes, are shown in hexadecimal (preceded by $: $3E $5A $03...).
  • Empty lines are not advised. Please use:
    • Comment
    • Comment Byte, Byte, Byte, Byte...

Tests

These tests in binary format (.68b) can be used to check the simulator. The source files are also provided.



9. Translator and Simulator

Translator

  • Translator.class
  • Usage: java Translator program
  • Effect: program.68a (assembler) will be converted to program.68b (binary). A temporary file program.tmp will also be created along the way (but is no longer required).

Simulator

You can also get all these files (together with the HTML description) by downloading sim68k.zip .
