//File: DAISAECategory.idl #ifndef _DAIS_AECATEGORY_IDL #define _DAIS_AECATEGORY_IDL #pragma prefix "omg.org" #include <DAISNode.idl>
module DAIS {module AlarmsAndEvents {module Category{
interface IHome : Node::IHome { Node::Descriptions get_main_categories ();
PropertyIDs get_event_properties (in ResourceID category
); }; };};}; #endif // _DAIS_AECATEGORY_IDL
IHome
IHome is an object for browsing categories. Most of the browsing functionality is inherited from DAIS::Node.
get_main_categories()
Get the three main categories; simple, condition, and tracking. The three main categories appear as three different roots.
Parameter Description
return
The descriptions for the three main categories. The labels for them are:
• “DAIS_CONDITION_CATEGORY?
• “DAIS_TRACKING_CATEGORY?
• “DAIS_SIMPLE_CATEGORY?
get_event_properties()
Get all properties that are used in the supervision of the source type for a specific category. The corresponding OPC method
is IOPCEventServer::QueryEventAttributes().
Parameter |
Description |
||||
| category | The identification of the categories to get the properties for. | ||||
| return | A sequence of property identifications. |
Browse categories
get_main_reasons( )

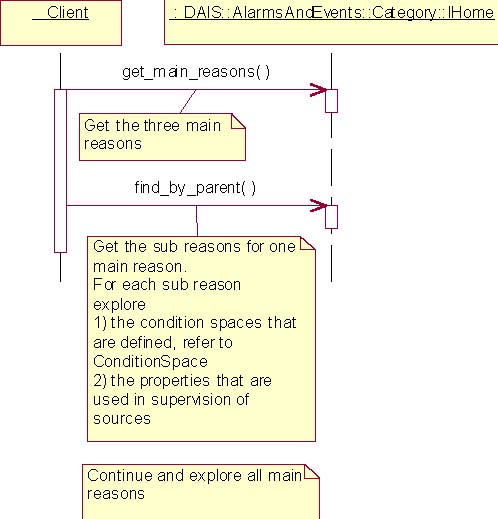

Figure 5-19 Browse category interaction
Browse properties
get_main_categories( )
find_by_parent( )
Figure 5-20 Browse properties interaction
