//File: DAISAEConditionSpace.idl #ifndef _DAIS_AECONDITION_SPACE_IDL #define _DAIS_AECONDITION_SPACE_IDL #pragma prefix "omg.org"
#include <DAISAECommon.idl>
module DAIS {module AlarmsAndEvents {module ConditionSpace {
struct ConditionDescription {
unsigned long | id_number; | ||||
string | name; | ||||
string | condition_logic; | ||||
unsigned long | severity; | ||||
string | descrip; | ||||
}; |
typedef sequence<ConditionDescription> ConditionDescriptions;
struct Description
{
ResourceID id;
string name;
string descrip;
ConditionDescriptionsconditions; }; typedef sequence< Description >Descriptions;
interface IHome {
exception UnknownResourceID {string reason;};
Description find ( in ResourceID condition_space ) raises (UnknownResourceID);
Descriptions find_each ( in ResourceIDs condition_spaces ) raises (UnknownResourceID);
Descriptions find_by_category ( in ResourceID category ) raises (UnknownResourceID);
Descriptions find_by_source ( in ResourceID source ) raises (UnknownResourceID);
Strings get_names ( in ResourceIDs condition_spaces );
ResourceIDs get_ids ( in Strings names );
};};};};#endif // _DAIS_AECONDITION_SPACE_IDL
ConditionDescription
A struct describing a condition.
Member | Description | ||||
id_number | A numeric identification unique within the condition space. | ||||
name | The name of the condition. | ||||
condition_logic | The logic telling when the condition is active. Refer to Section 5.2.7.3, “Condition Logic,? on page 5-38 for a description. | ||||
severity | Severity is a number between 1 and 1000 having the following meaning: • Low severity 1-200 • Medium low severity 201-400 • Medium severity 401-600 • Medium high severity 601-800 • High severity 801-1000 | ||||
description | A text that to be included in event notifications when the condition is active. |
Description
A struct describing the condition space.
Member | Description | ||||
id | A ResourceID identifying the condition space. | ||||
name | The name of the condition space. | ||||
description | A description of the condition space. | ||||
conditions | A sequence of the conditions creates the condition space. In OPC the conditions are called sub-conditions and are retrieved by the method IOPCEventServer::QuerySubConditionNames(). |
IHome
An object for browsing the condition spaces defined by a server.
find()
A method for getting the description of a condition space.
Parameter |
Description |
||||
condition_space | A ResourceID identifying a condition space. | ||||
return | The condition space description. |
find_each()
A method for getting the descriptions for a number of condition spaces.
Parameter |
Description |
||||
condition_spaces | A sequence of ResourceID identifying condition spaces. | ||||
return | A sequence of condition space descriptions. |
find_by_category()
A method for finding all condition spaces defined for a category. The corresponding OPC method is IOPCEventServer::QueryConditionNames().
Parameter | Description | ||||
category | A ResourceID identifying the category for which to get the condition spaces. | ||||
return | A sequence of condition space descriptions. |
find_by_source()
A method for finding all condition spaces defined for a source. The corresponding OPC method is IOPCEventServer::QuerySourceConditions().
Parameter | Description | ||||
source | A ResourceID identifying the source for which to get the condition spaces. | ||||
return | A sequence of condition space descriptions. |
get_names()
A method translating a number of condition space identifications into name strings.
Parameter | Description | ||||
condition_spaces | A sequence of ResourceID identifying condition spaces. | ||||
return | A sequence of condition space names. Non-translated identifications are returned as empty strings. |
get_ids()
A method translating a number of condition space names into ResourceIDs.
Parameter | Description | ||||
names | A sequence of condition space names. | ||||
return | A sequence of condition space ResourceIDs. Non- translated identifications are returned as NULL IDs. |
Browse condition space by source

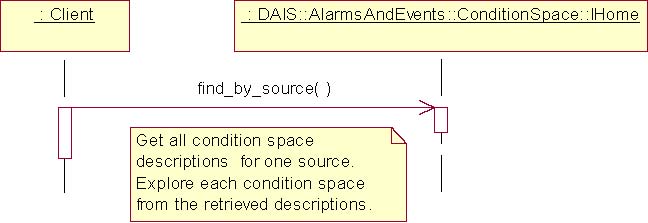

Figure 5-13 Browse condition space by source interaction
Browse condition space by category
find_by_category( )

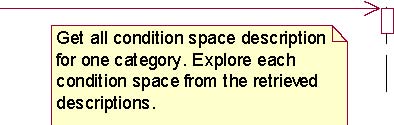

Figure 5-14 Browse condition space by category interaction
