5.7 SoftwareDeployment Metamodel

The Software Deployment package depends on the following packages: • org.omg::CWM::ObjectModel::Core • org.omg::CWM::Foundation::BusinessInformation • org.omg::CWM::Foundation::TypeMapping

The Software Deployment package contains classes to record how the software in a data warehouse is used.

A software package is represented as a SoftwareSystem object, which is a subtype of Subsystem. A SoftwareSystem may reference one or moreTypeSystems that define the datatypes supported by the SoftwareSystem. The mappings between datatypes in different TypeSystems may be recorded as TypeMappings, as described in Section 5.8, “TypeMapping Metamodel,? on page 5-66.

The separate components of a software package are each represented as Components that are either owned or imported by the SoftwareSystem. When a SoftwareSystem is installed, the deployment is recorded as a DeployedSoftwareSystem and a set of DeployedComponents.

A DeployedComponent represents the deployment of a specific Component on a specific computer. Dependencies between DeployedComponents on the same computer may be documented as Usage dependencies between them.

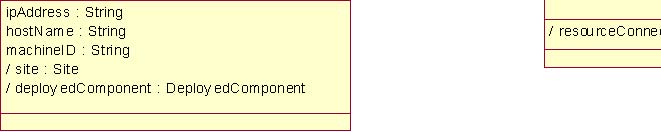

Individual computers are represented as Machine objects, located at a Site. A Site represents a geographical location, which may be recorded at any relevant level of granularity (for example, a country, a building, or a room in a building). Hierarchical links between Sites at different levels of granularity may be documented.

A DataManager is a DeployedComponent such as a DBMS or file management system that provides access to data. It may be associated with one or more data Packages identifying the Schema, Relational Catalog, Files, or other data containers that it provides access to.

A DataProvider is a DeployedComponent that acts as a client to provide access to data held by a DataManager. For example, an ODBC or JDBC client on a specific Machine would be represented as a DataProvider. A DataProvider may have several ProviderConnections, each identifying a DataManager that may be accessed using the DataProvider.

If a DataProvider uses a name for a data Package that is different from the actual name used by the DataManager, a PackageUsage object can be added to record this.

As a DataProvider is a subtype of DataManager, it is possible for a DataProvider to access data from a DataManager, which is actually a DataProvider acting as a client to yet another DataManager.

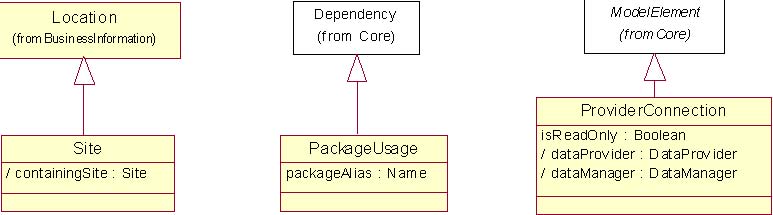

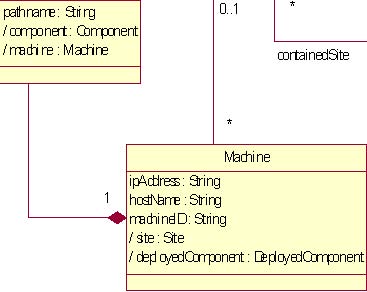

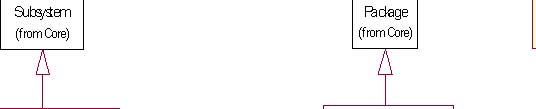

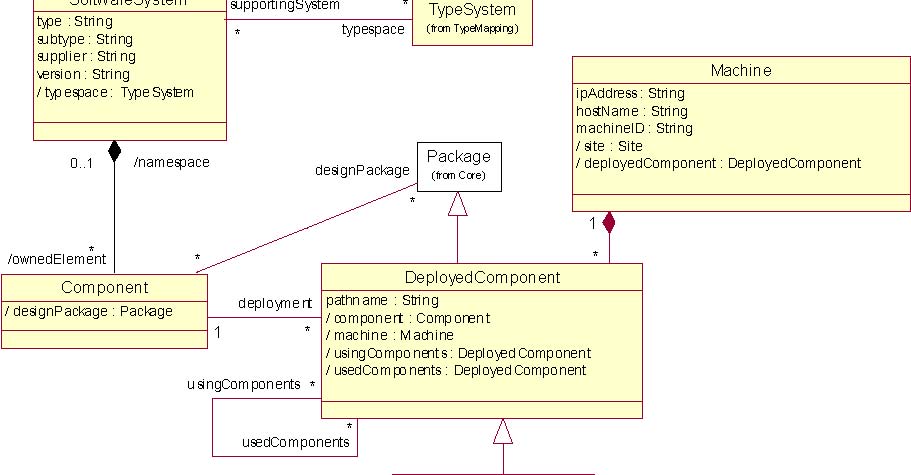

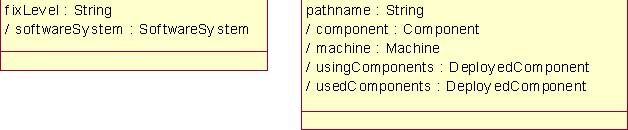

The model for the Software Deployment package is shown in the following three diagrams. The first diagram ( Figure 5-11 ) shows the objects related to software deployment, while the second diagram (Figure 5-12 ) displays the DataManager and DataProvider area of the model. The third diagram ( Figure 5-13) shows the inheritance structure for all the classes in the Software Deployment package.
