ITI 1220 Fall 2005 - Assignment 5

Available: Friday October 7
Due: Monday October 17, noon

Instructions

This assignment is to be done in TEAMS OF TWO PEOPLE. The assignment should be submitted only once by a member of your team, but please ensure that the identification material contains the information for both team members. Follow the instructions in the lab manual for submitting assignments.

Your algorithms should be developed using the format used in class. Your algorithm traces should use the format shown in class; a separate table is to be used for each call to each algorithm. Programs should be based on the template file, and should follow good coding practices as described in the course lab manual.

Marking Scheme (total 100 marks)

  • Regulations and Standards: 10 marks
  • Question 1: 40 marks
  • Question 2: 25 marks
  • Question 3: 25 marks

Question 1 (40 marks)

This shows the corrected formula.  There will be no deductions for using the originally posted formula.

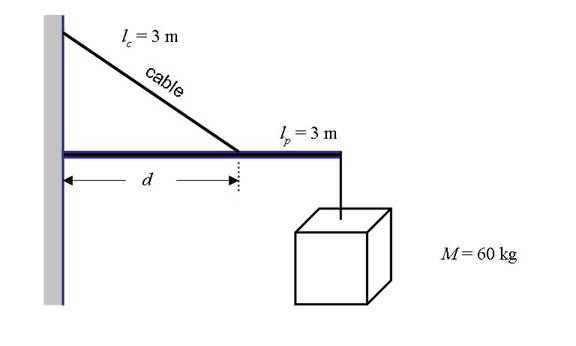

A 60 kilogram object is to be hung from the end of a rigid 3 metre horizontal pole of negligible mass, as shown in the figure below.  The pole is attached to a wall by a pivot and is supported by a 3 metre cable which is attached to the wall at a higher point.



The tension on the cable is given by the following equation:





where:

  • T is the tension on the cable, measured in Newtons (1 N = 1 kg ∙ m/s2)
  • M is the mass of the object, in kilograms (kg)
  • g is the gravitational constant, 9.8 metres per second-squared (m/s2)
  • lc is the length of the cable, in metres (m)
  • lp is the length of the pole, in metres (m)
  • d is the distance from the wall to the attachment point of the cable, in metres (m)



Part a) (20 marks)



Design an algorithm to determine the distance d at which to attach the cable to the pole in order to minimize the tension on the cable.  To do this, the algorithm should calculate the tension at 0.05 metre intervals from d = 0.5 metres to d = 2.5 metres, and keep track at which of those points that the tension had the minimum value.



The GIVENS for your algorithm should be the mass of the object, and the lengths of the cable and the pole.



Your algorithm should have as RESULTS the distance d at which the minimum tension occurs, as well as the tension T at that distance.



GIVENS:

            Mass                           (mass of the object, in kilograms)

            CableLength              (length of the cable, in metres)

            PoleLength                (length of the pole, in metres)



RESULTS:

            MinDistance              (distance, in metres, from wall to attach cable for minimum tension)

            MinTension                (minimum tension on cable, in Newtons)



HEADER:

            (MinDistance, MinTension ) ← FindMinimumTension( Mass, CableLength, PoleLength )



ASSUMPTIONS:

            All givens are greater than zero.



CONSTRAINTS:

            The pole length should be greater than two times the distance from the end.



INTERMEDIATES:

            Gravity                        (Constant:  acceleration due to gravity, in metres per second-squared)

            DistanceFromEnd    (Constant:  distance from wall and end of pole for starting and stopping loop)

            Increment                   (Constant:  difference between distance points to test)

            Distance                     (current distance, in metres, being evaluated for cable attachment point)

            Tension                      (tension, in Newtons, on cable at current attachment point)

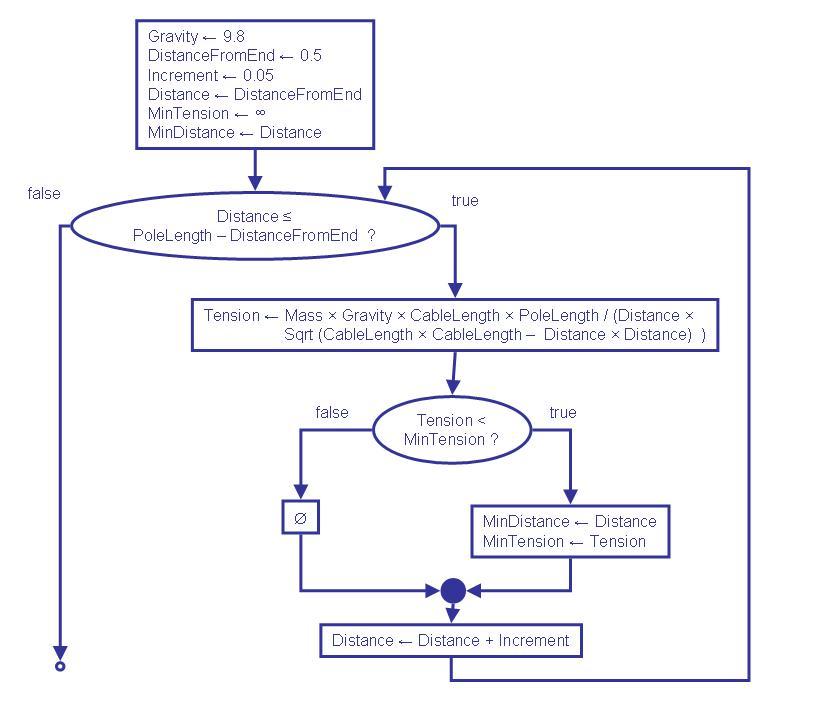

BODY:



Part b) (20 marks)



Translate your algorithm from Question 1 part a) to Java.



The use of the decimal formatter is shown for illustration only; use of the formatter is not necessary to receive full marks.



// ITI 1220 Fall 2005, Assignment 5, Question 1b

// Name: Alan Williams, Student# 81069665



import java.text.DecimalFormat;

import java.util.Scanner;



/**

 * This program finds the distance at which to attach a suspension cable

 * to a pole perpendicular to a wall that supports an object with specified

 * mass, in order to minimize the tension on the cable.

 *

 * To do this, the tension on the cable is calculated for various distances

 * at which the cable could be attached.  The calculation starts at a distance

 * 'distanceFromEnd' and is repeated with specified change in distance up to

 * the distance 'poleLength - distanceFromEnd'.

 */



public class A5Q1b

{

     public static void main( String[] args )

     {

           // SET UP KEYBOARD INPUT



           Scanner keyboard = new Scanner( System.in );

           DecimalFormat df = new DecimalFormat( "####.##" );



           // DECLARE VARIABLES/DATA DICTIONARY



           double mass;            // GIVEN        The mass of the object, in kg.

           double poleLength;      // GIVEN        Length of the pole, in m.

           double cableLength;     // GIVEN        Length of the cable, in m.

           double minDistance;     // RESULT       Distance with minimum tension, in m.

           double minTension;      // RESULT       The minimum cable tension, in Newtons.

           double gravity;         // INTERMEDIATE (Constant) Acceleration due to gravity, in m/s^2

           double distanceFromEnd; // INTERMEDIATE (Constant) Start and end distances from end of pole, in m.

           double increment;       // INTERMEDIATE (Constant) Difference between distance points, in m.

           double distance;        // INTERMEDIATE Current cable attachment distance, in m.

           double tension;         // INTERMEDIATE Tension at current distance, in Newtons.



           // PRINT OUT IDENTIFICATION INFORMATION



           System.out.println( );

           System.out.println( "ITI 1220 Fall 2005, Assignment 5, Question 1b" );

           System.out.println( "Name: Alan Williams, Student# 81069665" );

           System.out.println( );



           // READ IN GIVENS



           System.out.println( "Enter the mass, in kg:" );

           mass = keyboard.nextDouble( );



           System.out.println( "Enter the pole length, in m:" );

           poleLength = keyboard.nextDouble( );



           System.out.println( "Enter the cable length, in m:" );

           cableLength = keyboard.nextDouble( );



           // BODY OF ALGORITHM



           // Set up constants



           gravity = 9.8;

           distanceFromEnd = 0.5;

           increment = 0.05;



           // Initialize other variables.  Note that the maximum possible

           // double value is used for the initial minimum tension value,

           // so that any calculated value should be less than this number.



           distance = distanceFromEnd;

           minDistance = distance;

           minTension = Double.MAX_VALUE;



           // Repeat tension calcluation for each distance in range

           // [disanceFromEnd, poleLength - distanceFromEnd],

           // with specified increment in distance.



           while ( distance <= poleLength - distanceFromEnd )

           {

                // Calculate tension from formula



                // This is the corrected version of the formula.  No deduction

                // if poleLength is used in the denominator as in the original version.



                tension = mass

                           * gravity

                           * cableLength

                           * poleLength

                           / ( distance * Math.sqrt( cableLength * cableLength

                                     - distance * distance ) );



                // See if we have the minimum tension seen so far



                if ( tension < minTension )

                {

                     // Save minimum tension, and distance at which it occurred.



                     minTension = tension;

                     minDistance = distance;

                }

                else

                {

                     ; // do nothing

                }



                // Go to next distance



                distance = distance + increment;

           }



           // PRINT OUT RESULTS AND MODIFIEDS



           System.out.println( "The minimum tension is " + df.format( minTension )

                     + " N at distance " + df.format( minDistance ) + " m." );



     }

}

Question 2 (25 marks total)

Part a) (15 marks)



Design an algorithm that will determine whether or not an array A of length N is sorted in increasing order.  This means that within the array, if you compare the values in two consecutive array positions, the value at the lower array index is less than or equal to the value at the higher array index.



Your algorithm should immediately terminate the loop if it is discovered that the array is not sorted.



GIVENS:

            A                     (an array)

            N                     (the number of items in the array)



RESULTS:

            IsSorted          (true if array A is sorted in increasing order, and false otherwise)



HEADER:

            IsSorted ← CheckIfArraySorted( A, N )



ASSUMPTIONS:

            N is at least 2.

            Values in A can be compared with < operator.



INTERMEDIATES:

            Index               (current array position)

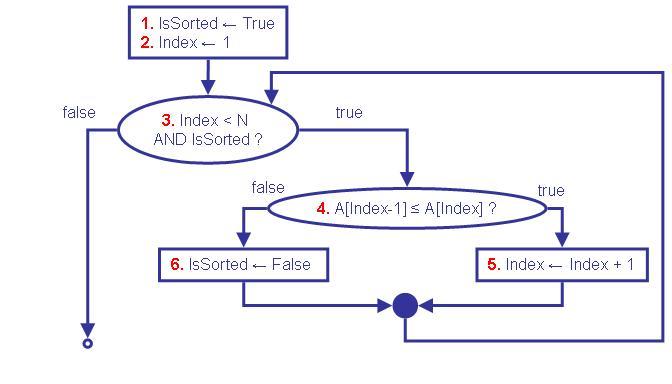

BODY:





Part b) (10 marks)



Trace your algorithm using this array:  { 5, 8, 8, 7, 12 }



#

Statement

A

N

IsSorted

Index

0

initial values

{ 5, 8, 8, 7, 12 }

5

?

?

1

IsSorted ← True





TRUE



2

Index ← 1







1

3

Index < N AND IsSorted : true









4

A[Index-1] ≤ A[Index] : true









5

Index ← Index + 1







2

3

Index < N AND IsSorted : true









4

A[Index-1] ≤ A[Index] : true









5

Index ← Index + 1







3

3

Index < N AND IsSorted : true









4

A[Index-1] ≤ A[Index] : false









6

IsSorted ← False





FALSE



3

Index < N AND IsSorted : false











Question 3 (25 marks total)

Part a) (15 marks)



Design an algorithm that will copy the values from a section of AnArray to a new array SubArray, where the section of AnArray to copy is from index Lower to index Upper inclusive.  That is, SubArray [0] receives a copy of the value in AnArray[Lower], SubArray [1] receives a copy of AnArray[Lower+1] and so on until the final value that is copied is AnArray[Upper].



GIVENS:

            AnArray                      (an array)

            Lower                         (lower index bound of copy range)

            Upper                         (upper index bound of copy range)



RESULTS:

            SubArray                    (a new array containing the values from AnArray[Lower] to AnArray[Upper])



HEADER:

            SubArray ← CreateSubArray( AnArray, Lower, Upper )



ASSUMPTIONS:

            Lower ≤ Upper

            The length of A is at least Upper + 1.



INTERMEDIATES:

            NewArraySize           (size of new array)

            Index                           (current array position in new array)

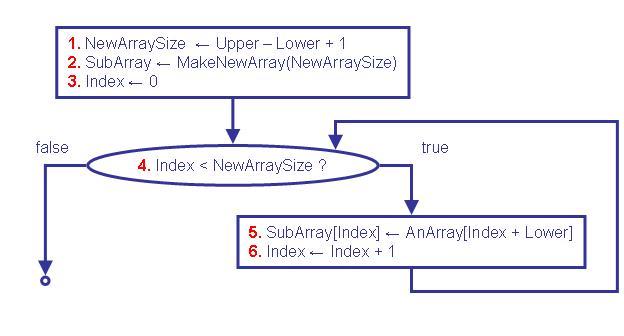

BODY:



Part b) (10 marks)



Trace your algorithm using the following GIVENS:



AnArray = { 20, 19, 18, 17, 16,  15, 14, 13, 12, 11, 10 }

Lower = 3

Upper = 5



#

Statement

AnArray

Lower

Upper

NewArraySize

SubArray

Index

0

initial values

{ 20, 19, 18, 17, 16,  15, 14, 13, 12, 11, 10 }

3

5

?

?

?

1

NewArraySize  ← Upper – Lower + 1







3





2

SubArray ← MakeNewArray(NewArraySize)









{ ?, ?, ? }



3

Index ← 0











0

4

Index < NewArraySize : true













5

SubArray[Index] ← AnArray[Index + Lower]









{ 17, ?, ? }



6

Index ← Index + 1











1

4

Index < NewArraySize : true













5

SubArray[Index] ← AnArray[Index + Lower]









{ 17, 16, ? }



6

Index ← Index + 1











2

4

Index < NewArraySize : true













5

SubArray[Index] ← AnArray[Index + Lower]









{ 17, 16, 15 }



6

Index ← Index + 1











3

4

Index < NewArraySize : false
